BrewPi Arduino shield soldering guide for Rev A
It is a good idea to make some neat ends on your temperature sensors. Start by twisting the wires.
Next, heat the wire and add some solder until the wire absorbs it.
Cut off most of the wire so you have about 2mm left.
Screw your wires into the heating/cooling terminals. The screw on the top moves the screw cage up and down. When you get your terminals, it is all the way up. You will have to lower it, insert the wires and raise it again to clamp the wire. In this picture black is ground and red is the signal wire. The wires do not need to be this thick, the signal current is low.

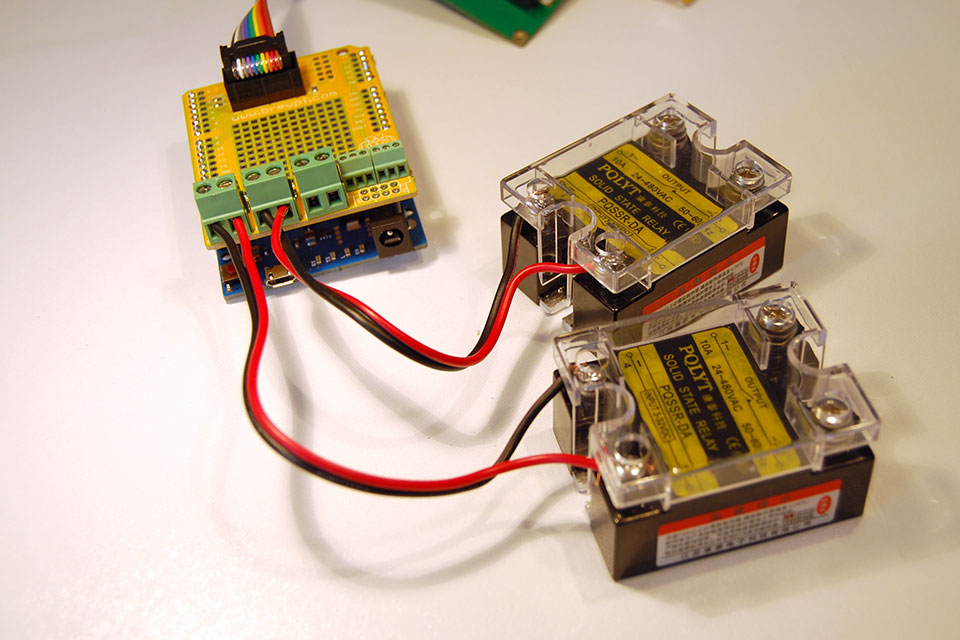

Two solid state relays connected!
I could not find a tiny screw driver, so I got a file and made one from a cheap kitchen knife I already abused a lot.
Insert your OneWire temperature sensors into the mini screw terminals. Red=5V, yellow=data, green=ground.
Ready for testing!

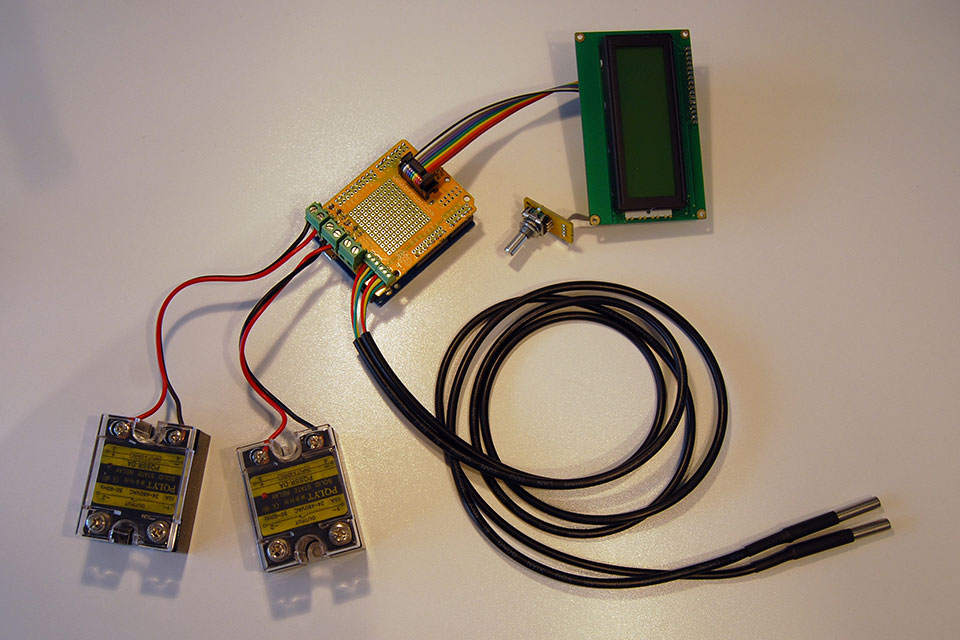

My full test setup looks like this: My Raspberry Pi connects to a powered USB hub and has its own separate power supply. The Arduino connects to hub. The prevents the Arduino from drawing lots of current from the pi. Lately my Pi has been more stable with the WiFi dongle directly plugged into USB and not in the hub.
Congratulations! You have successfully assembled your BrewPi! Take a proud picture and post it on the forum!
The bottom of page 1,
“This picture is just to show you what good solder joints look like: shiny, concave and covering the whole pad. We will get to this board later.”
I think you mean convex 🙂
I can’t wait to get my hands on one of these units, loving following the progress!
No I am pretty sure I mean concave…
I quote from this guide:
The whole of the joint itself is a convex structure COD yes, but in the way Elco uses it here it makes sense. They’re talking about the cross sectional profile of the joint in which case it’s convex. If it were concave it would look bulbous like a mushroom. I too for a moment thought hrmm…concave you say until I considered this interpretation.
Boy I really buggered that up and swapped some of the terms. The joint stands off the board = convex, but here the term concave describes the profile of the joint. If it were convex it would be a bulbous ball…the characteristic of a cold solder joint.
I’ll second concave as correct.
smooth volcano shape 🙂
Nice setup ! I`m currently making it … just had to buy a SD card big enough for all the setup. My 4GB was to small. 8GB seems to be ok.
ugh, i soldered the ICP header on the LCD board on the wrong side, and my solder sucker is stuck 🙁 ah well
Been there myself… Any attempt to get it off will probably ruin the connector, so you will have to buy another one. Luckily they are very common. To get it off, you can also make the pin side one big blob of solder, so you can heat all 10 at once.
You could leave it and assemble the cable in a way that works I think, but it will be very high.
Yeah i figured i could just flip the connector and try to bend the header for the LCD to allow for some room to the connector, that or break off some of the plastic around the header and solder wires to the pins and just create a connector out of it that doesnt require so much height.
Use a heat gun. Heat it carfully up and give it a little “hit” to the edge of something. With a little practice you can get it out from there. If you use it too much, you will ruin your print… For emergency use only.
Dont have a heat gun and im not too keen on ruining the print, im going to try something tommorow and evalute after that.
If you have the new Rev C board, note these instructions are still for the Rev A shield. Elco says the new instructions will be coming soon, but to help folks in the meantime, a few differences to note:
– There are more pieces in the parts bag – instead of soldering the screw posts to the board as pictured, now you solder terminals and the screwpost plugs will attach to the sensor/actuator wires.
– If you have an older Uno, there are fewer pins on the arduino than on the shield. Let them overhang the socket by the two pins.
– There is a 40 pin header in the kit. It’s for the 16 pin space in the LCD. Just cut to size, the extra is a bonus!
– and not pictured in these instructions is the one-wire distribution board. Self explanatory, once you look closely at it, although if you also got the case, I’m still not quite sure what to do with the one-wire piece of the case kit. But that’s a different matter.
Good luck!
