BrewPi Shield Pin Mapping

Published December 21, 2012 at 1102 × 584 in Check out these BrewPi Arduino shield PCBs :)

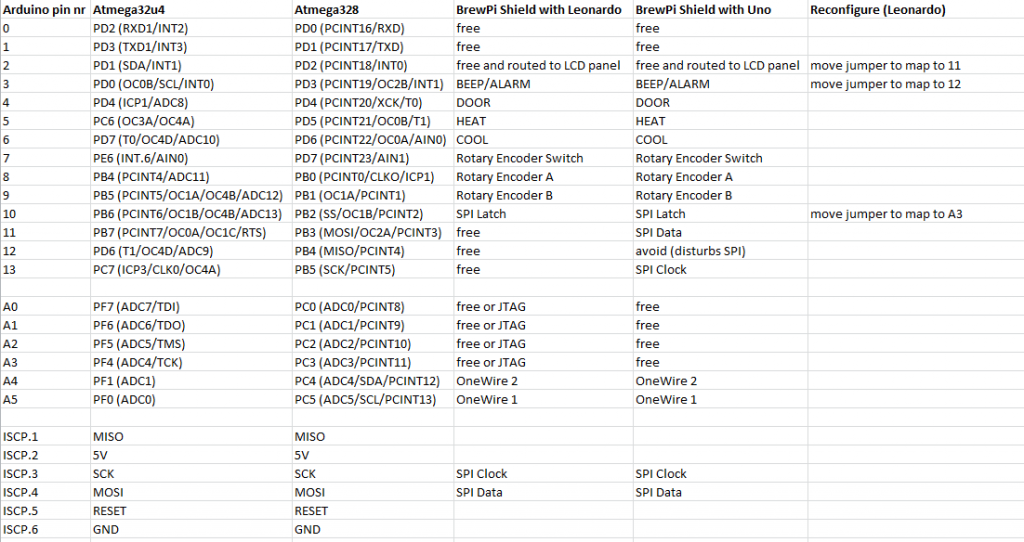

Pin mapping for the Arduino Shield. The jumper options allow you to reconfigure the shield to use SPI or i2c.
